*规格: 32mm to 315mm
*材质: PE100, PE100-RC,PP
*直管段长度可满足热熔对接焊和电熔焊
产品类别
关键词
斜三通
产品详情
|

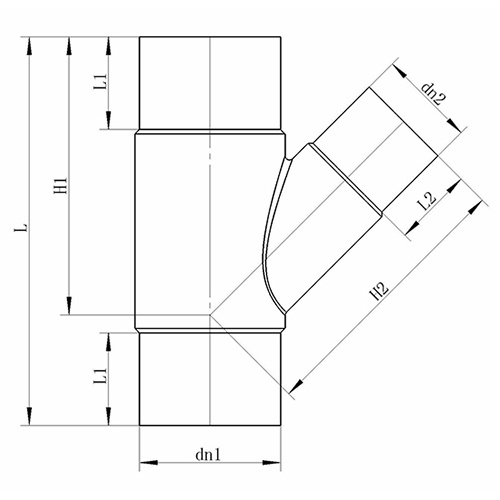

dn*dn1 |
L |
H1 |
H2 |
L1 |
L2 |
SDR |
|
dn63×50 |
255 |
170 |
170 |
65 |
65 |
SDR11 |
|
dn75×50 |
285 |
190 |
190 |
70 |
68 |
SDR11 |
|
Y75×63 |
285 |
190 |
190 |
70 |
68 |
SDR11 |
|
Y90×50 |
320 |
215 |
215 |
75 |
75 |
SDR17/SDR11 |
|
Y90×63 |
320 |
215 |
215 |
75 |
75 |
SDR17/SDR11 |
|
Y90×75 |
320 |
215 |
215 |
75 |
75 |
SDR17/SDR11 |
|
Y110×50 |
385 |
260 |
260 |
85 |
85 |
SDR17/SDR11 |
|
Y110×63 |
385 |
260 |
260 |
85 |
85 |
SDR17/SDR11 |
|
Y110×75 |
385 |
260 |
260 |
85 |
85 |
SDR17/SDR11 |
|
Y110×90 |
385 |
260 |
260 |
85 |
85 |
SDR17/SDR11 |
|
Y125×63 |
420 |
285 |
275 |
95 |
85 |
SDR17/SDR11 |
|
Y125×75 |
420 |
285 |
275 |
95 |
85 |
SDR17/SDR11 |
|
Y125×90 |
420 |
285 |
280 |
95 |
90 |
SDR17/SDR11 |
|
Y125×110 |
420 |
285 |
285 |
95 |
95 |
SDR17/SDR11 |
|
Y140×90 |
460 |
315 |
315 |
100 |
95 |
SDR17/SDR11 |
|
Y140×110 |
460 |
315 |
315 |
100 |
100 |
SDR17/SDR11 |
|
Y160×50 |
370 |
280 |
300 |
100 |
90 |
SDR17/SDR11 |
|
Y160×63 |
370 |
280 |
300 |
100 |
90 |
SDR17/SDR11 |
|
Y160×75 |
370 |
280 |
300 |
100 |
90 |
SDR17/SDR11 |
|
Y160×90 |
425 |
310 |
305 |
105 |
90 |
SDR17/SDR11 |
|
Y160×110 |
425 |
310 |
305 |
105 |
90 |
SDR17/SDR11 |
|
Y160×125 |
500 |
350 |
350 |
105 |
100 |
SDR17/SDR11 |
|
Y180×63 |
450 |
330 |
320 |
110 |
85 |
SDR17/SDR11 |
|
Y180×90 |
450 |
330 |
320 |
110 |
85 |
SDR17/SDR11 |
|
Y180×110 |
450 |
330 |
320 |
110 |
90 |
SDR17/SDR11 |
|
Y180×125 |
550 |
385 |
385 |
110 |
110 |
SDR17/SDR11 |
|
Y180×160 |
550 |
385 |
385 |
110 |
110 |
SDR17/SDR11 |
|
Y200×90 |
480 |
360 |
360 |
120 |
100 |
SDR17/SDR11 |
|
Y200×110 |
480 |
360 |
360 |
120 |
100 |
SDR17/SDR11 |
|
Y200×125 |
605 |
425 |
405 |
120 |
100 |
SDR17/SDR11 |
|
Y200×160 |
605 |
425 |
415 |
120 |
110 |
SDR17/SDR11 |
|
Y225×63 |
400 |
330 |
330 |
110 |
90 |
SDR17/SDR11 |
|
Y225×75 |
400 |
330 |
330 |
110 |
90 |
SDR17/SDR11 |
|
Y225×90 |
540 |
400 |
400 |
120 |
100 |
SDR17/SDR11 |
|
Y225×110 |
540 |
400 |
400 |
120 |
100 |
SDR17/SDR11 |
|
Y225×125 |
540 |
400 |
400 |
120 |
100 |
SDR17/SDR11 |
|
Y225×160 |
540 |
400 |
400 |
120 |
100 |
SDR17/SDR11 |
|
Y250×90 |
600 |
450 |
450 |
130 |
100 |
SDR17/SDR11 |
|
Y250×110 |
600 |
450 |
450 |
130 |
110 |
SDR17/SDR11 |
|
Y250×160 |
600 |
450 |
450 |
130 |
110 |
SDR17/SDR11 |
|
Y250×200 |
700 |
500 |
500 |
130 |
130 |
SDR17/SDR11 |
|
Y280×110 |
500 |
400 |
400 |
140 |
100 |
SDR17/SDR11 |
|
Y280×160 |
575 |
440 |
440 |
140 |
100 |
SDR17/SDR11 |
|
Y280×200 |
635 |
470 |
470 |
140 |
115 |
SDR17/SDR11 |
|
Y280×225 |
670 |
490 |
490 |
140 |
120 |
SDR17/SDR11 |
|
Y280×250 |
710 |
510 |
510 |
140 |
130 |
SDR17/SDR11 |
|
Y315×110 |
730 |
550 |
550 |
150 |
100 |
SDR17/SDR11 |
|
Y315×160 |
730 |
550 |
550 |
150 |
125 |
SDR17/SDR11 |
|
Y315×200 |
730 |
550 |
550 |
150 |
125 |
SDR17/SDR11 |
|
Y315×225 |
730 |
550 |
550 |
150 |
125 |
SDR17/SDR11 |
*dn32~dn63 也可提供承插款
*315mm以上规格可提供焊制件
